Breather cover plate dimensions

[PeterK]

Has anyone got a spare crankcase breather plate or easy access to the top of an engine?  I need the dimensions of the plate, to enable me to build a throttle support plate, but would rather not wait until I remove the CIS from my engine in November.

My current plan is to build a plate that mounts onto the 4 bolts on the breather plate and projects forward, with a throttle pivot point at the mid-point of my ITBs, hence the need for dimensions.

[Phill]

Peter, what you should be doing is over-engineering it like I did  Taking the easy route won’t make you feel good

[PeterK]

Thanks Phill 🤣

[tea boy]

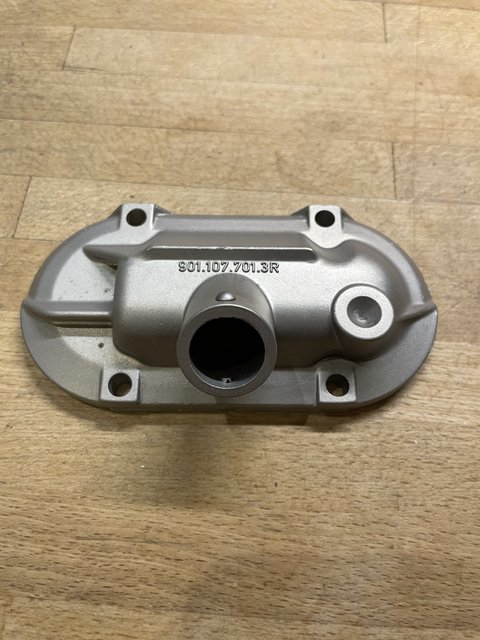

Do you mean this?

[PeterK]

Yes, that’s the puppy

[PeterK]

If I bolt my plate in top of that, where are the bolt holes and what will need to be remived from tge muddke to clear the sticky-up bits

In my mind is essentially a large U section to bolt into the cover plate , with the bottom of the U being solid plate continuing out to where I need to mount my pivot.

I've seen one on a Pelican post, but can't find the photo just now.

[tea boy]

If you PM me your address I can do a ‘brass rubbing’ of it and send it to you, if that helps?

[Phill]

https://forums.pelicanparts.com/porsche-911-technical-forum/991892-itb-guys-i-need-some-rough-dimensions-your-linkage-assembly-off-oil-breather.html


I know the one you mean. I can’t remember the name of the company that used to do it but they went out of business. Rennsport and Rothsport both do similar.

But, DanStEngineering do a linkage you could use with the mounting plate you develop. (They still have the pic of my old engine on the site  )

https://danstengineering.co.uk/index.php?route=product/product&product_id=1641



[PeterK]

Thanks TB.  PM inbound.







That's the thread Phill.

I have the DanST linkage, so just need to fabricate a plate to support it.

[hagarep]

Courtesy of Phil from 2018. I plan to make something similar.
